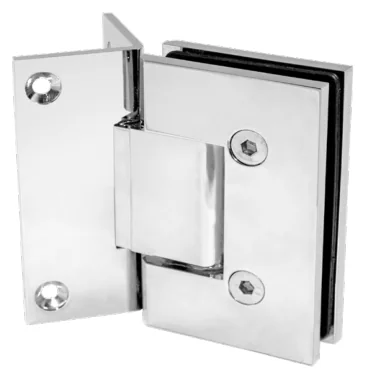

Wall to Glass Hinge 90° Mount

SKU ES1 90

10mm glass

• Wall Fix Hinge
• 90° mount plate with 4 wall fixing holes (stud fixing recommended)
• Suitable for 10mm glass (adaptable to other thicknesses)
• 35kg per two hinges and 52.5kg per three hinges with 800mm maximum door width
• Supplied with Hex Head machine screws and 50mm wall fix screws
• Hinges open in and out. Self closing from approximately 30°

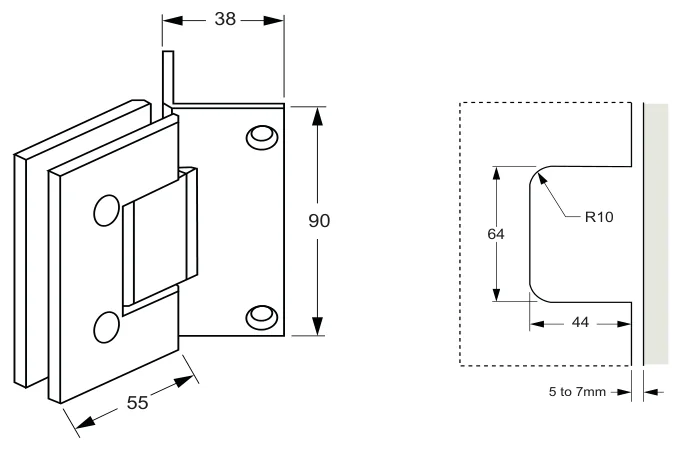

• Notch required in corner behind hinge mounting plate

Finishes: see the hardware finish range. We confirm availability for this part on your quote.

Ask about this partOr call Josh 0401 539 105 or Daniel 0433 279 221

Supplied and installed with your shower screen. No online orders.
