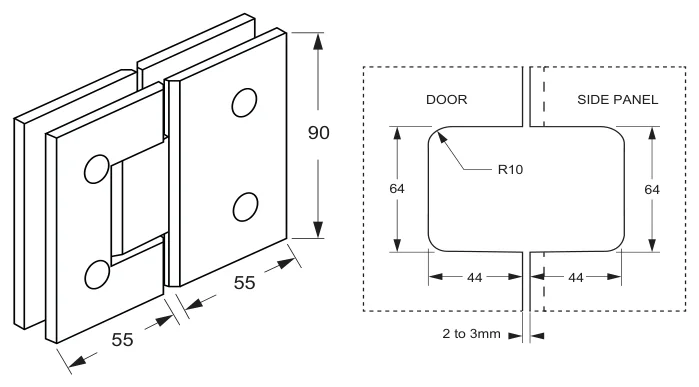

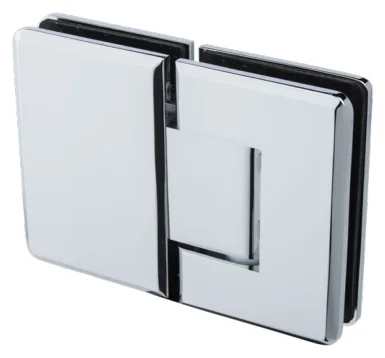

Bevelled glass to Glass Hinge Set 180° (B-ES2)Bevelled glass to Glass Hinge Set 180° technical drawing (B-ES2)

Bevelled glass to Glass Hinge Set 180°

SKU B-ES2

10mm glass

  • Glass to Glass Fix Hinge
  • 180° Angle
  • Suitable for 10mm glass (adaptable to other thicknesses)
  • 35kg per two hinges and 52.5kg per three hinges with 800mm maximum door width
  • Supplied with Hex Head machine screws
  • Hinges open in and out. Self closing from approximately 30°

Finishes: see the hardware finish range. We confirm availability for this part on your quote.

Ask about this partOr call Josh 0401 539 105 or Daniel 0433 279 221

Supplied and installed with your shower screen. No online orders.
